Carport Solar PV Mounting System Structure

Carport Bracket/Ground Bracket
Material: Aluminum Alloy/PosMAC
Slope: Any
Wind Load: 40-60m/s
10years, 25years Service Life
Customized Design Service

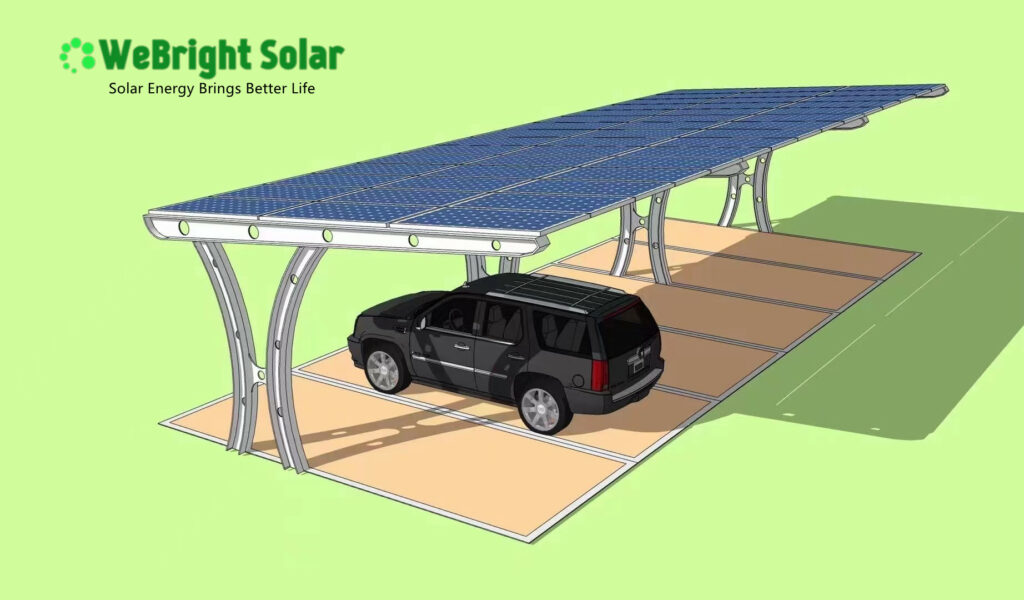

Carport Solar PV Mounting System Structure

Carport Solar PV Mounting System are mainly made of SUS304 and AL6005-T5 material, and new material PosMAC is popular to use. The structure is consice, solid and at good look-appearance. The flat solar mounting structure is easy to assemble and at labor-cost save. The solar mounting system is applicable to a variety of ground-mounted sites.

SPECIFICATIONS

Installation site: Carport /Ground-mounted.
Installation angle: 5°,10°, Customized
Wind speed：<45m/s.
Snow load： <1.2KN/m².
Build height：<20m.
Material：AI 6063-T5 & SUS304./ PosMAC
Surface treatment： Anodizing/HDG/Magnesium Aluminum Alloy Coating in double sided with 275g/m²
Warranty：10-year warranty , 20-year service life

Carport solar pv mounting bracket system designs with great flexibility both for commercial and residential roof solar system.
WeBright Solar Panel Tracking Mount hihgly engineered solution which can effectively reduce the influence of wind on the solar panel power system, with Q235B steel bracket as main body material,HDG surface treatment, as well as Magnesium Aluminum Alloy Coating, and service life is more than 25 years.
Carport Solar Panel Adjustable Mount designed according to the actual installation angle and no need to break the waterproof layer.

Solar PV Mounting System Hardware

Solar Mounting Bracket Package

TO HELP YOU GET THE RIGHT SYSTEM, PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?

Other Off Grid Solar System Components & Accessories

Solar Panels

Optional Mono/Poly Blue/Black Panels

High Efficiency with PERC panels available

25 years warranty with 80% power output

PID Resistant,High salt and ammonia resistance

Battery

2V/12V GEL/AGM batteries optional

48V 50Ah/100Ah/200Ah Lithium Battery

Mounting Bracket

Customized design with CAD drawing

Flat/pitched roof, soil/cement ground installation

PV Combiner Box&Installation Tools

PV Array Combiner Box

SPD surge protection etc

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly

PV Cables

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A

Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

30A/1000V compatible MC4

Package & Delivery

Inverter Solar panels Mounting bracket

Battery in wooden box Professional package Loading

WeBright Solar can customize your own complete solar power system solution kit based on your requests. We provide grid-tied,off-grid,hybrid with PV system solutions.

Contact Information:

Email:info@webrightsolar.com

Tel: +86 1831265127

Whatsapp: +86 18312565127

TO GET BEST QUOTE AND DETAILS

WeBright Solar, dedicated and devoted as always, provide you complete solar power kits, solar power solutions, and customized solar system, etc, with good quality and flexible service. Let's work together in Renewable Energy for Better Life.
