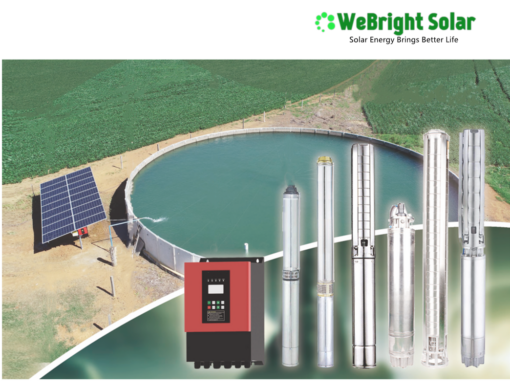

AC Solar Water Pumping System with AC Solar Pump 0.37KW-22KW
AC Solar Pumping System supplied by WeBright Solar can be used in daily water use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on. Solar water pump system is dispensed with energy storage and stores water by no Grid electricity. Also It improves the reliability of the water pumping system, at the same time, it reduces the cost of system installation and maintenance of the irrigation system very much.
Solar Pumping System Features:
- Directly powered by infinite solar energy, perect and cost-effective renewable energy solutions
- Easily installed, without need of Grid electricity & Batteries device
- System works automatically & intelligently, reducing the cost of manual management and maintenance
Solar pumping inverter controls and regulates the operation of solar pumping system. It drives the pump by converting DC power from the solar array into AC power and adjusts the output frequency according to solar radiation in real time to implement maximum power point tracking (MPPT).
The pump is driven by 3-phase AC motor. It can draw water from deep wells or river, lake to fill into the tank or reservoir, or directly connect to irrigation system, fountain system, etc.
According to the actual system demand and installation condition, different types of pumps such as centrifugal pump, axial flow pump, mixed flow pump and deep well pump can be applied.
Solar Water Pumping System Installation Case
- AC Solar Pump Features:
- Max DC input volt 450V/850V
- Max Head: 250m
- Water Flow: 1100m³/d
- Hybrid AC Power with Solar Priority
- Support Multi-link System
- IP655, Full Protection
Other Off Grid Solar System Components & Accessories
Optional Mono/Poly Blue/Black Panels
High Efficiency with PERC panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance
2V/12V GEL/AGM batteries optional
48V 50Ah/100Ah/200Ah Lithium Battery
Customized design with CAD drawing
Flat/pitched roof, soil/cement ground installation
PV Combiner Box&Installation Tools
PV Array Combiner Box
SPD surge protection etc
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
30A/1000V compatible MC4
Package & Delivery
WeBright Solar can customize your own complete solar power system solution kit based on your requests. We provide grid-tied,off-grid,hybrid with PV system solutions.
