5KW Off Grid Solar System Residential Solar Kit

  • 5KW Complete Solar System
  • Off Grid Type for Home
  • With Battery as Backup
  • Power by Solar/Battery/Grid

5KW Off Grid Solar System Residential Solar Kit with Solar Home Equipment

5KW off grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question. Here`s why:
To ensure access to electricity at all times, off-grid solar systems require battery storage and a backup generator (if you live off-the-grid). On top of this, a battery bank typically needs to be replaced after 15 years. Batteries are complicated, expensive and decrease overall system efficiency.

5KW Off Grid Solar System Residential Solar Kit

Complete System Configuration

Item

ModelDescription

Quantity

1

Solar Panels Poly/Mono modules 350W Optional

16 pieces

2

Combiner Box 4-inputs 1-output(Switches, Breaker, SPD)1 piece
3Charge controller96V 50A MPPT/PWM type

1 piece

4

Battery 12V 200/250Ah GEL/AGM type(Adjustable)16 pieces
5Off-grid Inverter5KW  96Vdc

1 piece

6

Mounting SupportAluminum/Galvanized steel; Customized; Pitched / flat roof, ground

1 set

7

CableSingle-core 4mm2 and 6mm2 PV cable200 meters
8ConnectorMC4 connector

20 pairs

9

Tools Bag5 kinds of PV installation tools-MC4 spanner, Crimping pliers, wire stripper

1 bag

5KW Off Grid System Residential Solar Kit is a great option for people with average power use, living in small homes. They are particularly suited to small families or couples.

Solar Panels

Optional Mono/Poly Blue/Black Panels
High Efficiency with PERC panels available
25 years warranty with 80% power output

PID Resistant,High salt and ammonia resistance

5KW Off Grid Solar System Residential Solar Kit

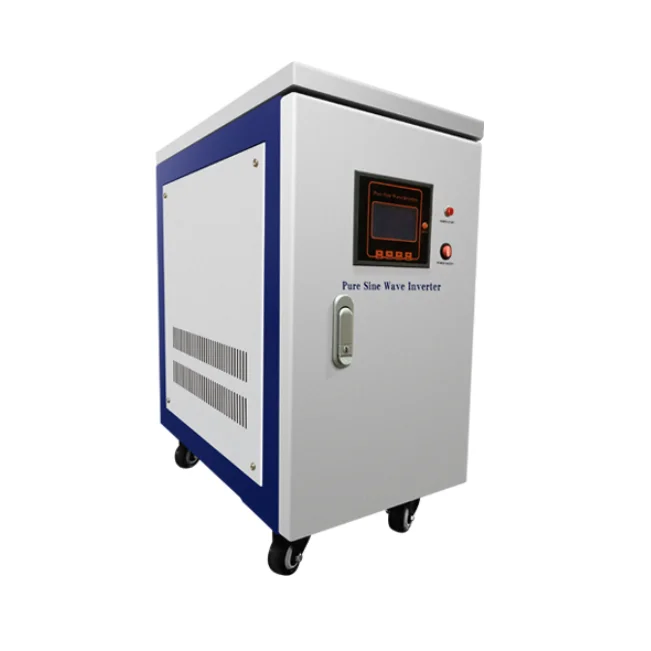

Power Inverter

Pure Sine Wave Inverter

Input Voltage from 12V to 1000V

Single phase and Three phase UE/US standard

Solar Charger Controller

LCD Display

MPPT/PWM types optional



Battery

2V/12V gel/agm batteries optional

48V 50Ah Li battery

Mounting Bracket

Customized design with CAD drawing

Flat/pitched roof, soil/cement ground installation

PV Combiner Box&Installation Tools

PV Array Combiner Box
SPD surge protection etc

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly

PV Cables

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A

Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

30A/1000V compatible MC4

Package & Delivery

                  Inverter                                                                                                  Solar panels                                                                               Mounting bracket

         Battery in wooden box                                       Professional package                                                             Loading

WeBright Solar can customize your own complete solar power system and PV solution kit based on your requests. We provide grid-tie,off-grid, hybrid PV system solutions.
