LITHIUM BATTERY

12V 100Ah 200Ah 24V LiFePO4 Battery for Home Energy Storage System

  • Nominal Volt: 12.8V
  • Nominal Capacity: 100Ah
  • Energy Storage: 1280Wh
  • With MBS
  • Maximum Batteries in Series * 4
Category Tag

12V 100Ah 200Ah 24V LiFePO4 Battery for Home Energy Storage System





Lithium-Iron Phosphate, or LiFePO4 Deep-Cycle batteries provide a alternative solution to demanding applications that require a lighter weight, longer life, and higher capacity battery, no matter for common power supply or solar energy system. Features include advanced battery management systems (BMS) and active intelligent monitoring.

LiFePO4 batteries are another alternative to Lead-Acid or AGM Deep-Cycle batteries. Lithium Iron Phosphate(LiFePO4 Battery) can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

  • Common Power Supply

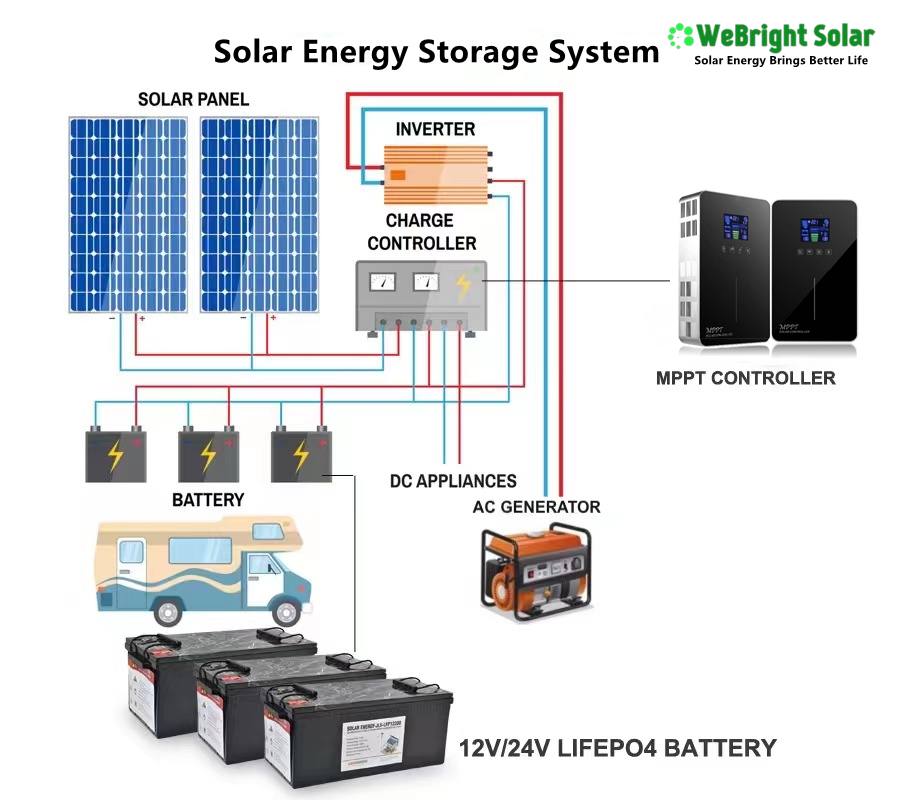

  • Solar Energy Storage
  • Caravan
  • Golf Car
  • Marine
  • Telecom Site


FEATURES & BENEFITS

High cycle life

4000 cycles @80% DoD for effectively lower total of ownership cost

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.


CAUTIONS

•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Store at 30~50% SOC. Recharging every 3 months is recommended. The storage area should be clean, cool, dry and ventilated.


TECHNICAL SPECIFICATIONS

Nominal Voltage12.8 V
Nominal Capacity100 Ah
Capacity @ 20A300 min
Energy1280 Wh
Resistance≤30 mΩ @ 50% SOC
Self Discharge<3% / Month

CHARGE PERFORMANCE

Recommended Charge Current20A
Maximum Charge Current50A
Recommended Charge Voltage14.6V
BMS Charge Cut-Off Voltage<15.6 V (3.9V/Cell)
Reconnect Voltage>14.4 V (3.6V/Cell)
Balancing Voltage<14.4 V (3.6V/Cell)
Maximum Batteries in Series4

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current50 A
Peak Discharge Current80 A (3s)
BMS Discharge Cut-Off Current120 A ±5 A (30ms)
Recommended Low Voltage Disconnect11 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage>8.0 V (2s) (2.0V/Cell)
Reconnect Voltage>10.0 V (2.5V/Cell)
Short Circuit Protection250 ~ 500 ÎĽs

COMPLIANCE

CertificationsCE (battery) UN38.3 (battery)
UL1642 & IEC62133 (cells)
Shipping ClassificationUN 3480, CLASS 9

MECHANICAL PERFORMANCE

Dimension (L x W x H)320 x 172 x 215 mm
13.0 x 6.7 x 8.5″
Approx. Weight27.8 lbs (12 kg)
Terminal TypeDIN POST
Terminal Torque80 ~ 100 in-lbs (9 ~ 11 N-m)
Case MaterialABS+PC
Enclosure ProtectionIP65

TEMPERATURE PERFORMANCE

Discharge Temperature-4 ~ 131 ÂşF (-20 ~ 55 ÂşC)
Charge Temperature-4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature23 ~ 95 ÂşF (-5 ~ 35 ÂşC)
BMS High Temperature Cut-Off149 ÂşF (65 ÂşC)
Reconnect Temperature131 ÂşF (55 ÂşC)

HEATING FOIL PERFORMANCE

Heating Temperature Range-4 to 41 ÂşF (-20 to 5 ÂşC)
Heating TimeApproximately 1 hour @ 7.5 A
BMS Heating Foil Cut-Off158 ÂşF (70 ÂşC)
